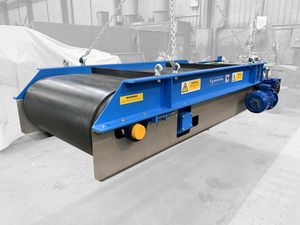

BMRA service member, Bunting, has developed a new stronger ElectroMax-Plus Overband Magnet, creating a more compact and powerful electromagnetic.

Electromagnetic Overband Magnets use an oil-cooled or air-cooled wire coil to generate a deep and strong magnetic field. The electromagnetic force radiates from a coil wound around a steel core and mounted inside a steel box with a thick steel back-bar. This focuses the magnetic field in one direction: down towards the conveyed material. In operation, an Overband Magnet, suspended over conveyors, screens, and vibratory feeders, lifts and removes ferrous metals such as iron rebar and beverage steel cans.

Overband Magnets are a common feature on many mobile screens and crushers. In such applications, minimising weight and size is crucial and, subsequently, operators use standard Ceramic Ferrite or, less frequently, Neodymium Rare Earth Permanent Overband Magnets rather than Electromagnets.  Neodymium Permanent Overband Magnets produce a strong but shallow magnetic force and often experience problems with belt and motor damage due to large ferrous metal clamping against the magnet block. The magnetic field of the light and compact ElectroMax-Plus is both deep and strong, enabling excellent separation performance at higher suspension heights.  In addition, simply turning off the electromagnet releases any extremely large entrapped tramp ferrous metal. The shape and nature of this magnetic field means there is less wear to the self-cleaning belt mechanism (e.g. belt, motor gearbox, and bearings).

The new ElectroMax-Plus operates at a 600mm suspension height (the distance between the conveyor belt and the face of the Overband Magnet), up from 450mm on a standard ElectroMax. At a suspension height of 500mm, the ElectroMax-Plus is over 105% stronger (in terms of Force Index) that the equivalent ElectroMax. This additional magnetic force removes small tramp ferrous metal commonly missed by permanent Overband Magnets.

The latest ElectroMax-Plus provides companies in the recycling sector with a powerful and compact solution for separating tramp and secondary ferrous metal from conveyors.

“Companies supplying mobile recycling equipment are requesting stronger and lighter Overband Magnets,” explained Adrian Coleman, the General Manager of Bunting’s Redditch operation.  “The new ElectroMax-Plus provides a real alternative to Neodymium Rare Earth Overband Magnets.  There is the requested additional magnetic strength, without the operating problems [as experienced with some Neodymium Rare Earth Overband Magnets].’

The new ElectroMax-Plus extends Bunting’s comprehensive range of Overband and Suspension Magnets.  In additional to standard sizes, Bunting also designs and manufacturers bespoke models which are application specific.
